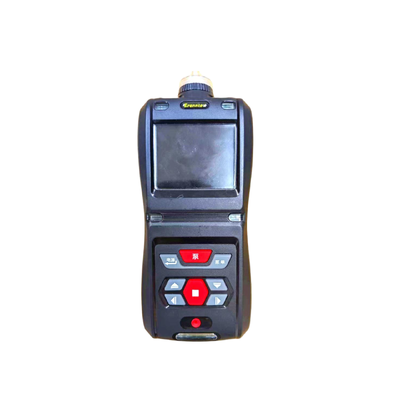

Zetron MS500 Multi-Gas Personal Protection Detector (H2S/O2/LEL/CO/CO2) - Portable, Rapid Response, High Precision

  • Zetron MS500 Multi-Gas Personal Protection Detector (H2S/O2/LEL/CO/CO2) - Portable, Rapid Response, High Precision
  • Zetron MS500 Multi-Gas Personal Protection Detector (H2S/O2/LEL/CO/CO2) - Portable, Rapid Response, High Precision
  • Zetron MS500 Multi-Gas Personal Protection Detector (H2S/O2/LEL/CO/CO2) - Portable, Rapid Response, High Precision
  • Zetron MS500 Multi-Gas Personal Protection Detector (H2S/O2/LEL/CO/CO2) - Portable, Rapid Response, High Precision
  • Zetron MS500 Multi-Gas Personal Protection Detector (H2S/O2/LEL/CO/CO2) - Portable, Rapid Response, High Precision
  • Zetron MS500 Multi-Gas Personal Protection Detector (H2S/O2/LEL/CO/CO2) - Portable, Rapid Response, High Precision
  • Zetron MS500 Multi-Gas Personal Protection Detector (H2S/O2/LEL/CO/CO2) - Portable, Rapid Response, High Precision
Lugar de origem China
Marca Zetron
Certificação CE
Número do modelo MS500
Quantidade de ordem mínima 1 CONJUNTO
Detalhes da embalagem Caixa de papel
Termos de pagamento L/C, D/P, D/A, T/T

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Nome do produto Analisador de gás portátil Número do modelo MS500
unidade de gás PPM, mg/m3, Vol%, LEL%, PPHM, ppb, Mg/l. Tipo Multi detector de gás portátil, infravermelho
Garantia 12 meses Cor Preto
Nível de proteção IP66 Suporte personalizado OEM, ODM, OBM
Peso 350g TAMANHO 180*78*33mm
Deixe um recado
Descrição de produto

MS500 Portable Gas Detector



OVERVIEW


MS500 combines precision engineering with rugged functionality, offering comprehensive and simultaneous monitoring of up to five atmospheric hazards, including flammable, toxic, and oxygen gases. It is ideal for environments that require strict safety compliance and proactive risk management.



PARAMETERS





Measuring gas
CO/H2S/LEL/O2/CO2
Measuring range
0-1000,2000,5000ppm
Other ranges can be customized
Resolution
0.1 ppm
1 ppm
Other ranges can be customized
Sensor type
Other Sensor: Infrared, Electrochemical, catalytic combustion, thermal conductivity, PID photoionization, and so on.
Other Sensor can be customized
Measuring type
Built-in pump-suction type
Response time
T90<20s
Display
2.5-inch high-definition color screen
Alarm method
sound & light + vibration alarm
Battery
DC3.7V, 3000mA high capacity rechargeable polymer battery
Data storage
Standard capacity is 100,000 entries.
Working temperature
-40 ℃ ~ + 70 ℃
Working humidity
0 ~ 95% RH
Housing
Rubber enclosure
Standard accessories
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case,
belt clip, humidity dust filter
Dimension (L×W×H)
180×78×33mm
Weight
350g
Ex grade
Ex ia IIC T4 Ga Intrinsically safe type
Ingress protection
IP66



PARAMETERS

Simultaneous Gas Monitoring: Can monitor 1 to 5 gases at once.

Gas Library: Supports over 500 types of gases.

Imported, High-Sensitivity Sensors: Guarantees stable, accurate, and long-lasting performance.

Rapid Response: Response time of ≤20 seconds, ensuring quick intervention.

Accuracy: ±2% Full Scale, delivering high precision for regulatory compliance.

Data Logging: Stores up to 100,000 data entries with customizable storage modes (real-time or fixed intervals).

Multi-Port Data Transfer: USB and RS232 ports for easy, high-speed data extraction.

Wireless Reporting: Built-in Bluetooth for direct connection to a wireless printer for real-time report printing on-site.

Display: 2.5-inch color screen with three viewing modes: Single-channel concentration, Multi-channel overview, and Real-time concentration curve.

Advanced Alarm System: Multi-layered, with sound, light, vibration, visual cues, concentration, under-voltage, and failure alerts.

Configurable Alarms: Customizable low/high concentration thresholds and alarm settings (TWA/STEL).



Zetron MS500 Multi-Gas Personal Protection Detector (H2S/O2/LEL/CO/CO2) - Portable, Rapid Response, High Precision 0





APPLICATION



MS500 Multi-Gas Personal Protection Detector is a state-of-the-art portable gas analyzer designed to provide continuous, real-time monitoring of hazardous gases including H2S, O2, LEL, CO, and CO2. Engineered for personal safety in high-risk environments, the MS500 offers rapid response times and high precision, ensuring immediate detection and protection against toxic or explosive gases. Featuring advanced, imported sensors and a user-friendly interface, this device allows workers to monitor multiple gases simultaneously while maintaining compliance with stringent safety standards. With a durable, explosion-proof design, an IP65 rating for dust and water resistance, and wireless reporting capabilities, the MS500 is the ideal solution for ensuring personal safety in confined spaces, industrial plants, and environments with high gas exposure risks.

Zetron MS500 Multi-Gas Personal Protection Detector (H2S/O2/LEL/CO/CO2) - Portable, Rapid Response, High Precision 1
