Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66

  • Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66
  • Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66
Lugar de origem China
Marca Zetron
Certificação ISO,CE,FCC, ROHS, CNEX
Número do modelo PTM600-EG
Quantidade de ordem mínima 1
Preço $100-$5000
Detalhes da embalagem Carton de papel
Tempo de entrega 3-7 dias
Termos de pagamento T/T, Western Union, MoneyGram
Habilidade da fonte 1000 conjunto/mês

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Nome do produto Zetron PTM600-EG Laser metano e detector de etano Nível de proteção IP66
Gás detectado Metano (ch₄) e etano c₂h₆ Tempo de resposta 0,5 S
Método de medição Tipo de escuridão da bomba Taxa de fluxo de amostragem máxima 1.5 L/min
Destacar

Zetron PTM600-EG methane detector

,

laser methane detector with IP66

,

fast response methane ethane detector
Você pode marcar os produtos de que precisa e se comunicar conosco no quadro de mensagens.
Deixe um recado
Descrição de produto

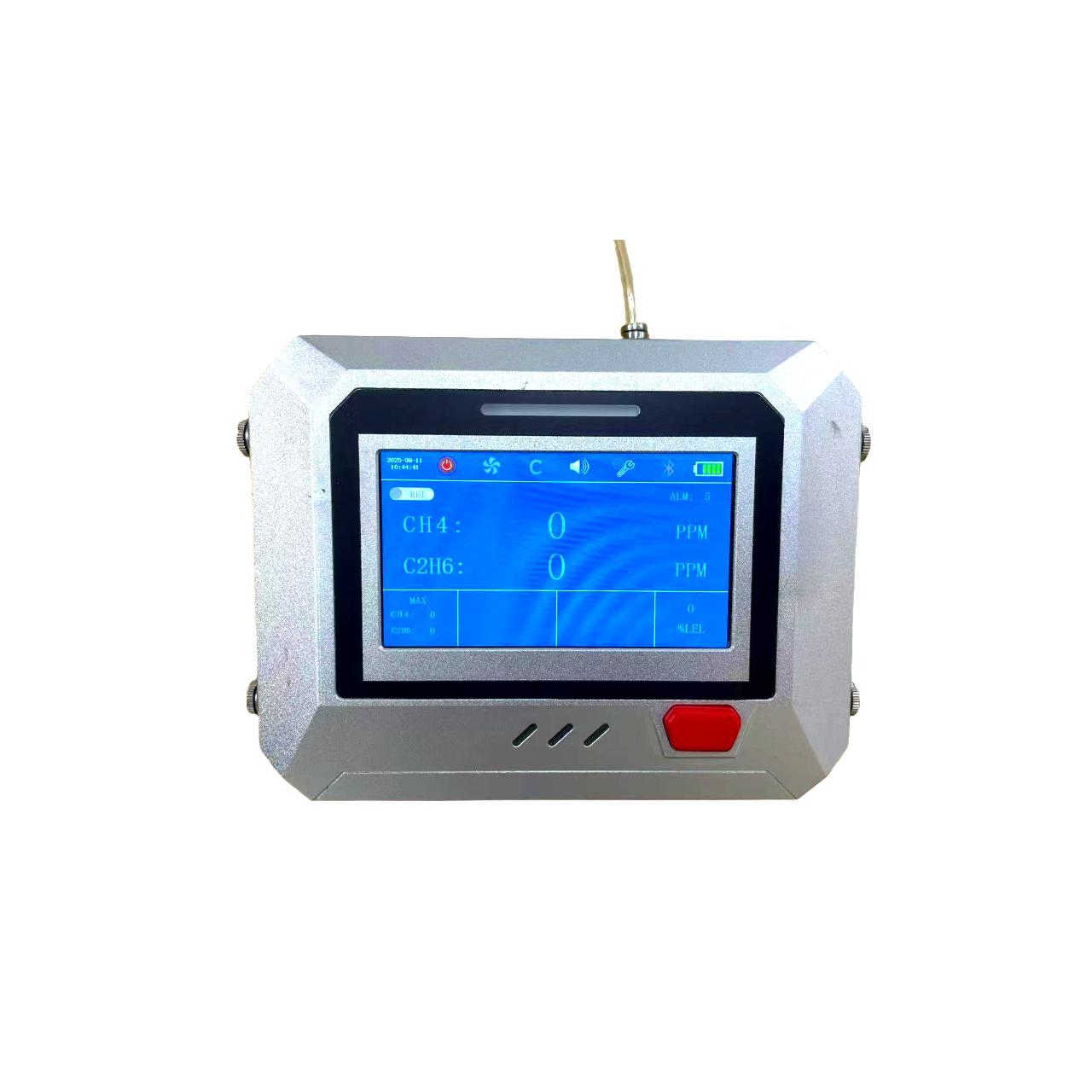

Zetron PTM600-EG Portable Laser Methane Ethane Gas Detector
Natural Gas Pipeline Leak Inspection
The Zetron PTM600-EG portable laser methane ethane detector utilizes advanced Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology for natural gas pipeline leak detection. This device simultaneously detects methane and ethane concentrations, enabling differentiation between natural gas and biogas. With superior detection sensitivity and extended service life, it represents a modern high-tech solution for gas detection.
Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66 0
Key Features
  • Multi-range coverage: Supports ppm, %LEL, and %VOL full-range display to meet diverse application needs.

  • Intelligent and user-friendly operation: One-button startup combined with an intuitive touchscreen interface for fast and easy operation.

  • Long service life: Device lifespan of up to 10 years.
  • High specificity: Precisely identifies chemical reactions of methane and ethane only.
Technical Specifications
Attribute Value
Product Name Zetron PTM600-EG Laser Methane and Ethane Detector
Detected Gas Methane (CH₄) and Ethane C₂H₆
Response Time 0.5 s
Measurement method Pump-suction type
Maximum sampling flow rate 1.5 L/min
Measuring range Methane: 0-100,000 ppm; Ethane: 0-30,000 ppm
Sensitivity 1ppm
Power supply Lithium-ion battery 7.2V 6800mAh or 12V DC
Operating Temperature -25℃ ~ 50℃
Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66 1 Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66 2
Applications
The PTM600-EG Portable Laser Methane Ethane Detector is designed for accurate, rapid detection in various industrial and municipal applications. Its advanced TDLAS technology provides high specificity and sensitivity for identifying natural gas or biogas leaks. With pump-suction design, fast 0.5-second response, and full-scale measurement range (ppm, %LEL, %VOL), it's ideal for pipeline patrols, station inspections, municipal underground pipelines, courtyard pipelines, long-distance transmission lines, and other specialized inspection scenarios. The intrinsically safe design with IP66 protection grade offers professionals a durable, reliable gas detection solution.
